Maintaining seamless operations of key systems like crushers, mills, conveyor belts, and smelting equipment is paramount in an industry where downtime can result in staggering financial and operational losses. Any failure in these interconnected systems can lead to cascading disruptions, resulting in site-wide shutdowns that jeopardize safety and failures in these interconnected systems can lead to cascading disruptions.
However, reliability isn’t just about minimizing lost revenue due to unplanned downtown. It is also critical to public, worker, and environmental safety, as sudden equipment failures can create hazardous conditions. By prioritizing reliability, mining operators ensure compliance with industry regulations, meet production targets and maintain consistent output.
Proactively adopting real-time data monitoring and advanced solutions enables mining operations to detect, anticipate, and address challenges before they escalate.
Challenges to Reliable Mining Operations
The path to achieving production reliability is fraught with challenges unique to the mining industry. Understanding why asset management is vital, allows companies to implement more effective strategies to overcome these challenges and improve operational efficiency.
Mining operations often occur in harsh environments with extreme temperatures, high particle counts, and heavy vibrations. These factors accelerate equipment wear and tear, increasing the likelihood of unexpected breakdowns. Additionally, the remote locations of many mines make it challenging to access spare parts and skilled technicians, further complicating maintenance efforts.
The interconnected nature of mining equipment compounds these challenges. A single point of failure can disrupt an entire operation, leading to a domino effect of delays and reduced productivity. To give just one example, copper mining is electro intensive and a high magnitude direct current is used to produce electrolytic grade copper. That direct current is produced using dozens or hundreds of distribution transformers up to 10 miles apart to supply subprocesses ranging from 5MW to 20MW or larger.
Crucially, predictive maintenance, underpinned by condition based monitoring (CBM), offers mining operators a proactive solution to maintaining reliability even when assets are far away from one another, detecting issues and preventing catastrophic outcomes before they occur.
Reactive maintenance approaches—fixing issues after they occur—only exacerbate the problem by shortening the lifespan of critical assets, introducing safety risks, and potentially leading to significant financial losses.
To address these challenges, mining companies should transition from reactive to proactive, predictive maintenance strategies, leveraging advanced technologies to predict and prevent failures before they occur.
How Predictive and Condition Based Maintenance Revolutionize Mining
Instead of relying on periodic inspections or waiting for failures to occur, CBM evaluates equipment performance in real time, enabling operators to identify potential issues before they escalate.
CBM tracks critical performance metrics such as temperature, pressure, and insulation health, providing early warnings of potential failures. For instance, transformer monitoring systems detect changes in temperature, bushing health, and partial discharges, preventing costly breakdowns. Similarly, switchgear and cable monitoring systems identify insulation issues and partial discharges, ensuring workplace safety and system reliability. Motor monitoring systems collect data during regular operations to provide immediate insights into potential problems, ensuring critical motors perform optimally.
By integrating these tools into their operations, mining companies can extend the lifespan of their assets, reduce unplanned downtime, and align their practices with industry best practices. The result is improved reliability, enhanced sustainability, and cost efficiency.
The Power of Real Time Data in Mining
Real-time data is transforming the way mining operations are managed. Continuous monitoring of asset health allows operators to gain actionable insights that enable better decision-making and enhanced operational efficiency. Mining companies can identify performance trends across critical assets such as motors, transformers, and switchgear through real-time data analysis. This increased visibility allows them to adapt quickly to emerging issues, reducing downtime and improving overall productivity.

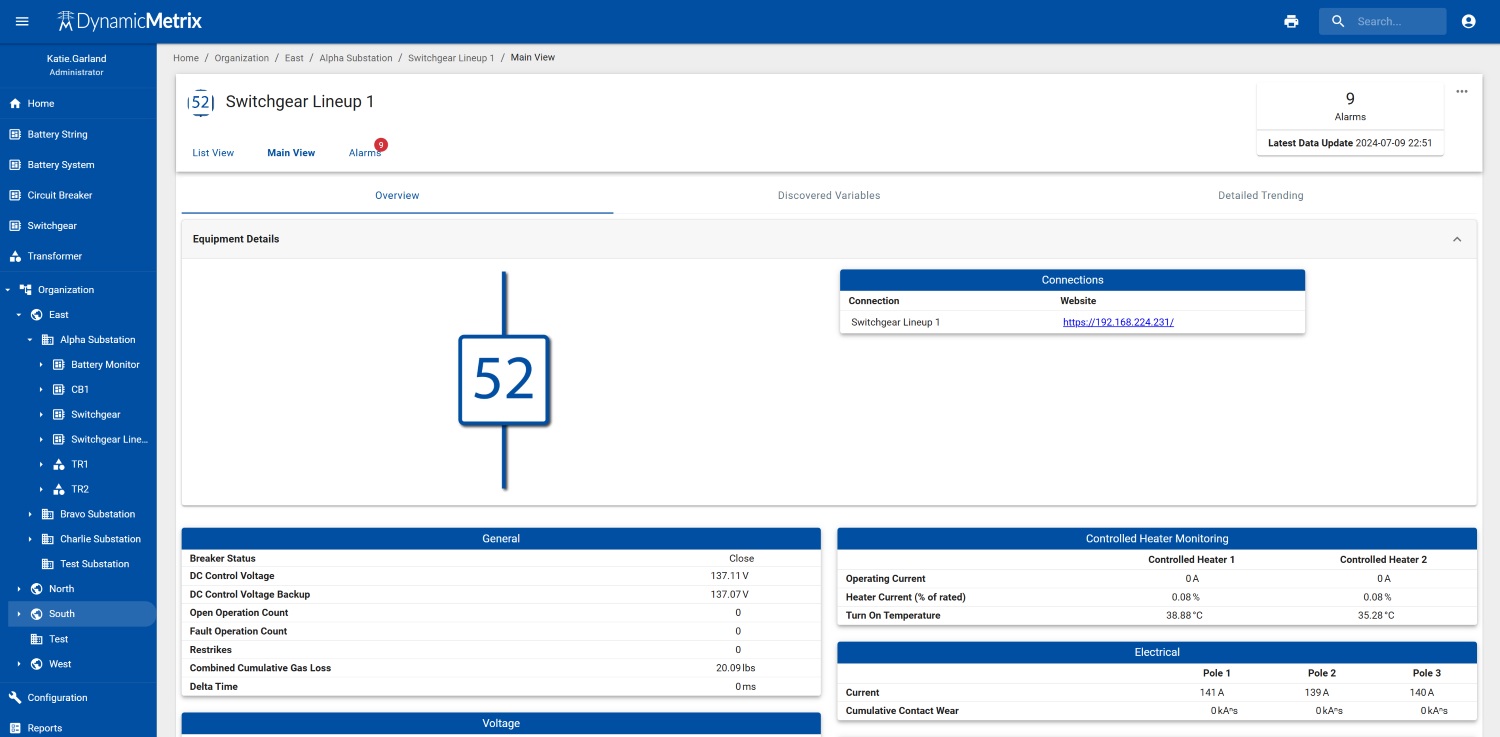

Dynamic Ratings’ solutions exemplify the value of real-time monitoring. The DynamicMetrix® is a dashboard visualization tool aggregating data from various assets into an intuitive platform that simplifies visualization and analysis. Geospatial mapping features and the Concerns Index prioritize maintenance tasks, helping operators focus on the most critical issues. Integration with third-party devices ensures a comprehensive view of asset health. At the same time, tools like the C50, E3, and B100 Transformer Monitors provide detailed insights into performance metrics, including temperature trends and partial discharge.
With historical data trends at their fingertips, operators can make informed decisions about load management, equipment upgrades, and maintenance schedules. Real-time monitoring enhances resource allocation efficiency and empowers operators to maintain stability despite unforeseen challenges.
For more hands-on knowledge, attend our user group meetings and stay ahead in mining technology innovation.
Meeting the Demands of a Changing Mining Industry
As the mining sector evolves, operators face increasing pressure to adopt scalable, sustainable technologies that align with rising production demands and environmental goals. Continuous online monitoring systems are critical in addressing these challenges. Advanced tools like the ConnectGrid™ Smart Infrastructure Solution utilize IoT and LPWAN technologies to enhance connectivity for distributed assets, facilitating seamless data transfer from remote sites to centralized dashboards.

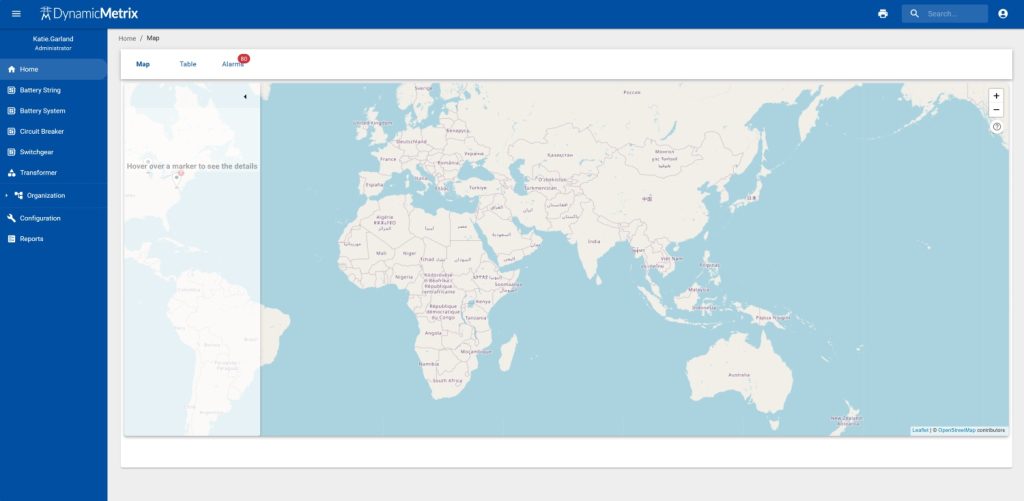

Legacy systems also benefit from modernization through the iBridge Communication system, which allows for encrypted Serial or TCP based communication over existing conductors. Geospatial Views on the DynamicMetrix® further support operations by displaying asset locations and health ratings on interactive maps, enabling operators to prioritize maintenance tasks efficiently.
Unified dashboards consolidate all online condition monitoring data, allowing operators to make confident, data-driven decisions.
These advancements equip mining companies with the tools to scale operations sustainably while meeting the growing global demand for raw materials. Real-time insights and predictive capabilities enable mines to operate with greater resilience and adaptability, ensuring long-term competitiveness and compliance with regulatory and market expectations.
Deep Dive into DynamicMetrix® and ConnectGrid™
DynamicMetrix® and ConnectGrid™ represent the cutting edge of mining technology, offering innovative monitoring, analysis, and infrastructure optimization solutions. DynamicMetrix® is a comprehensive dashboard visualization tool that consolidates data from transformers, circuit breakers, and switchgear into a single, easily accessible platform. Its geospatial mapping capabilities allow operators to see the real-time status and location of assets, prioritize critical maintenance tasks, and to plan more effectively.
This dashboard also integrates data from third party devices and provides the data in preferred formats such as Modbus, making it a versatile solution for mining operations with diverse equipment inventories. Operators benefit from features such as a Concerns Index, which ranks assets by health and urgency, and automated data retrieval, ensuring timely updates without manual intervention. These functionalities empower operators to make proactive decisions, minimize risks, and maintain uninterrupted operations. Integrating asset performance management software can further optimize these processes and improve decision-making efficiency.
ConnectGrid™, on the other hand, is an innovative infrastructure solution that bridges the gap between traditional systems and modern connectivity demands. Utilizing IoT and Low-Power Wide-Area Network (LPWAN) technologies, ConnectGrid™ enables seamless communication between distributed assets and central management systems. This solution is particularly valuable for mining sites spread across vast and remote areas, where traditional communication methods may falter.
Incorporating advanced communication protocols and scalable architecture allows ConnectGrid™ to support the integration of Distributed Energy Resources (DERs) and facilitates the transition to more sustainable energy practices. Its ability to convert data from legacy systems into actionable insights ensures that older equipment remains a valuable part of the operational ecosystem. Together, DynamicMetrix® and ConnectGrid™ create a unified framework for data-driven decision-making, enhancing both reliability and sustainability in mining operations.
Adding Sustainability Metrics to Mining Operations
Sustainability is no longer optional for the mining industry. Stakeholders, including investors, regulators, and communities, expect mining companies to demonstrate a commitment to environmental stewardship. Advanced monitoring solutions from Dynamic Ratings empower operators to achieve energy efficiency, reduce waste, and minimize their environmental footprint. For instance, implementing Distributed Energy Resources (DERs) supported by ConnectGrid™ allows mines to integrate renewable energy sources effectively, reducing reliance on traditional fossil fuels.
Real-time data plays a pivotal role in supporting sustainable practices. Mining operators can significantly reduce energy consumption and adopt more environmentally friendly operations by optimizing equipment performance. Scalable solutions like ConnectGrid™ and DynamicMetrix® ensure compatibility with emerging technologies, enabling mines to adapt seamlessly to changing industry demands.
Case Study: Preventing Switchgear Failure Through Online Condition Monitoring

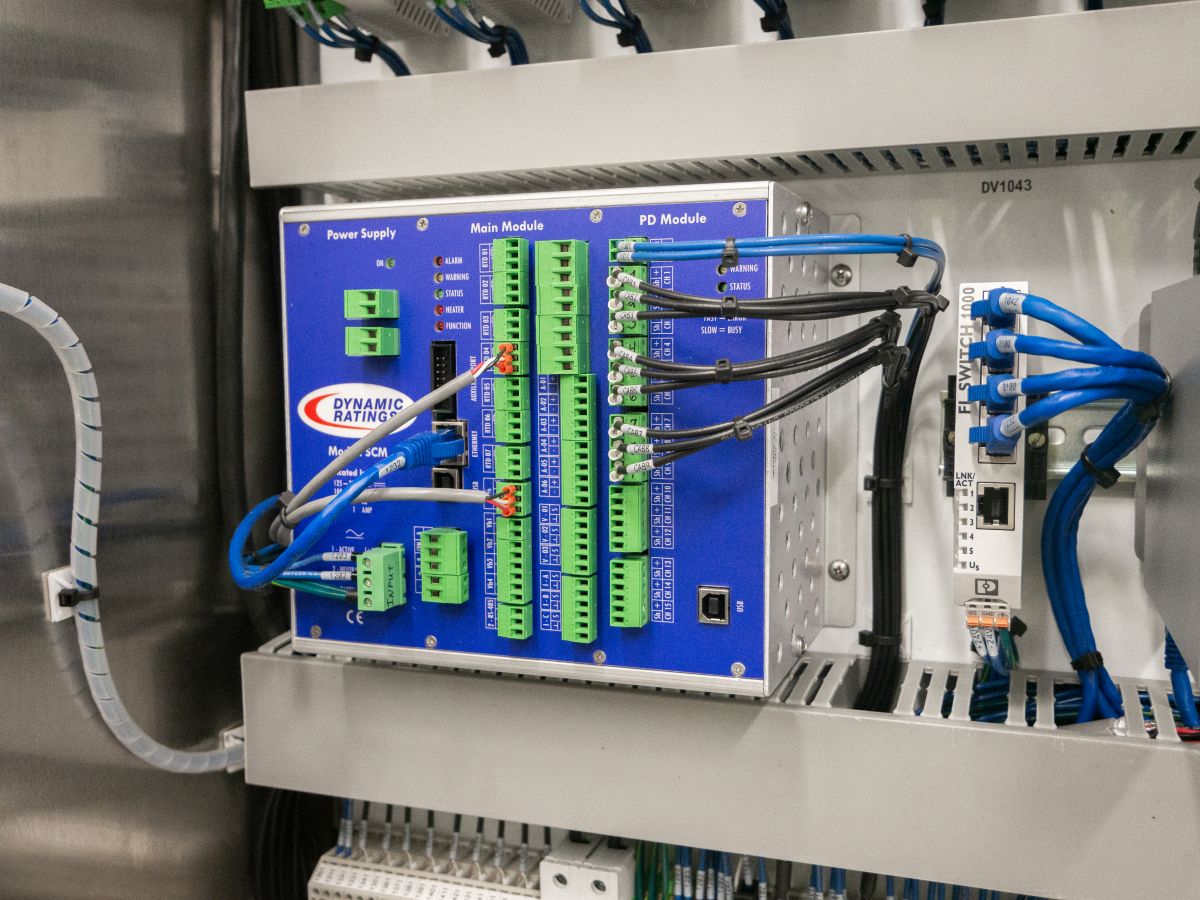

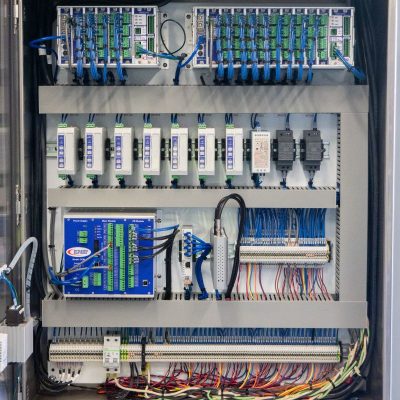

A case study demonstrates the effectiveness of predictive maintenance in preventing switchgear failures. A South African mining company that relies on smelting furnaces experienced a failure in the cable terminations, causing costly downtime and halting production entirely. Dynamic Ratings’ Switchgear and Cable Monitor (SCM) played a pivotal role in identifying the issue early.
While performing partial discharge (PD) diagnostic analysis with the SCM, a high amount of PD activity was detected on the furnace cable terminations. Proactive monitoring allowed the company to arrange an emergency shutdown to investigate further. During the inspection, the root causes of the problem were uncovered. High voltage (50Hz) was applied to the 33kV cable terminations, revealing incorrectly installed terminations and voids between the screen and XLPE insulation, which were contributing to tracking discharges.
The termination issues were resolved, and two terminations with the highest discharges were replaced, avoiding significant costs associated with complete switchgear replacement. Moreover, the proactive use of the SCM extended the life of the switchgear, enhanced job site safety, and provided a scalable solution for monitoring future risks.
This case highlights how Dynamic Ratings’ condition-based monitoring solutions, like the SCM, empower mining operators to prevent costly outages, improve safety, and ensure operational reliability in even the harshest conditions.
Why Dynamic Ratings is the Partner of Choice
Dynamic Ratings offers mining operators a comprehensive suite of tools to enhance production reliability and sustainability. Our expertise in condition-based maintenance helps companies overcome industry challenges while maximizing the lifespan of critical assets. With solutions that proactively prevent unplanned outages and reduce downtime, Dynamic Ratings empowers mining operators to achieve operational excellence.
Our adaptable, scalable technologies are tailored to meet the unique demands of modern mining. From the DynamicMetrix® Dashboard to ConnectGrid™ and iBridge solutions, Dynamic Ratings provides the infrastructure necessary to navigate the complexities of today’s mining landscape. By investing in these advanced solutions, mining operators position themselves for success in an industry that demands innovation and resilience.
Ensuring mining production reliability is not just about addressing current challenges. Contact us to learn how Dynamic Ratings can provide innovative solutions tailored to your operational needs, helping you achieve sustained profitability and environmental stewardship.
Author: Tyler Willis, Dynamic Ratings
